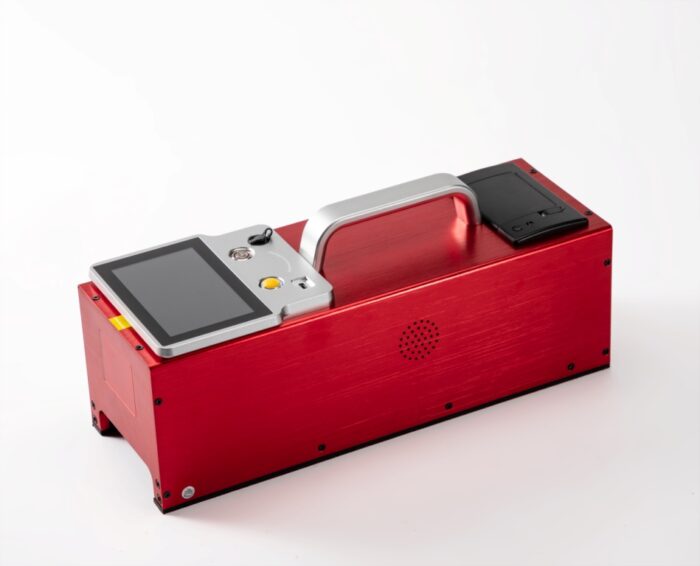

Rainynight marking line retroreflection detector

The marking line retroreflection measuring instrument is a portable on-site measurement instrument with an open light path, used to measure the retroreflection brightness coefficient of the marking line. Unit: mcd·m-2·lx-1. The main characteristics of its research are: simulating a motor vehicle driving on the road at night, the headlights shining on the markings (made of retroreflective material) on the road, and the brightness observed by the driver in the cab after reflection. The parameter measured is the nighttime retroreflective luminance coefficient, or RL value. This instrument can measure the marking line and the retroreflection brightness coefficient of the oscillating marking line under three conditions: dry R_L, wet R_(L_wet) and continuous rainfall R_(L_rain).

This instrument complies with the following standards:

GB/T 26377-2010 “Retroreflection Measuring Instrument”,

GB/T16311-2009 “Road Traffic Marking Quality Requirements and Testing Methods”,

JJF 1809-2020 “Calibration Specifications for Retroreflection Measuring Instruments”

JTGF80-1-2017 “Highway Engineering Quality Inspection and Assessment Standards”,

DB36/T978-2017 “Quality Requirements and Testing Methods for Reflective Markings on Road Traffic on Rainy Nights”,

DB51/T2429-2017 “Quality Requirements and Testing Methods for Reflective Markings on Highway Traffic on Rainy Nights” and other standard requirements.

ASTM E1696-2015 , EN 1463

High values are more accurate and will not be interfered by external light. One-click printing on-site (no need for additional printer)

Main features

Open light path, no interference from external light during measurement;
Support measurement under dry, humid and continuous rainfall conditions;
Fast measurement (retroreflective brightness coefficient value measured within 1.5 seconds);
Supports simple calibration procedures and uses ceramic calibration blocks for calibration operations;

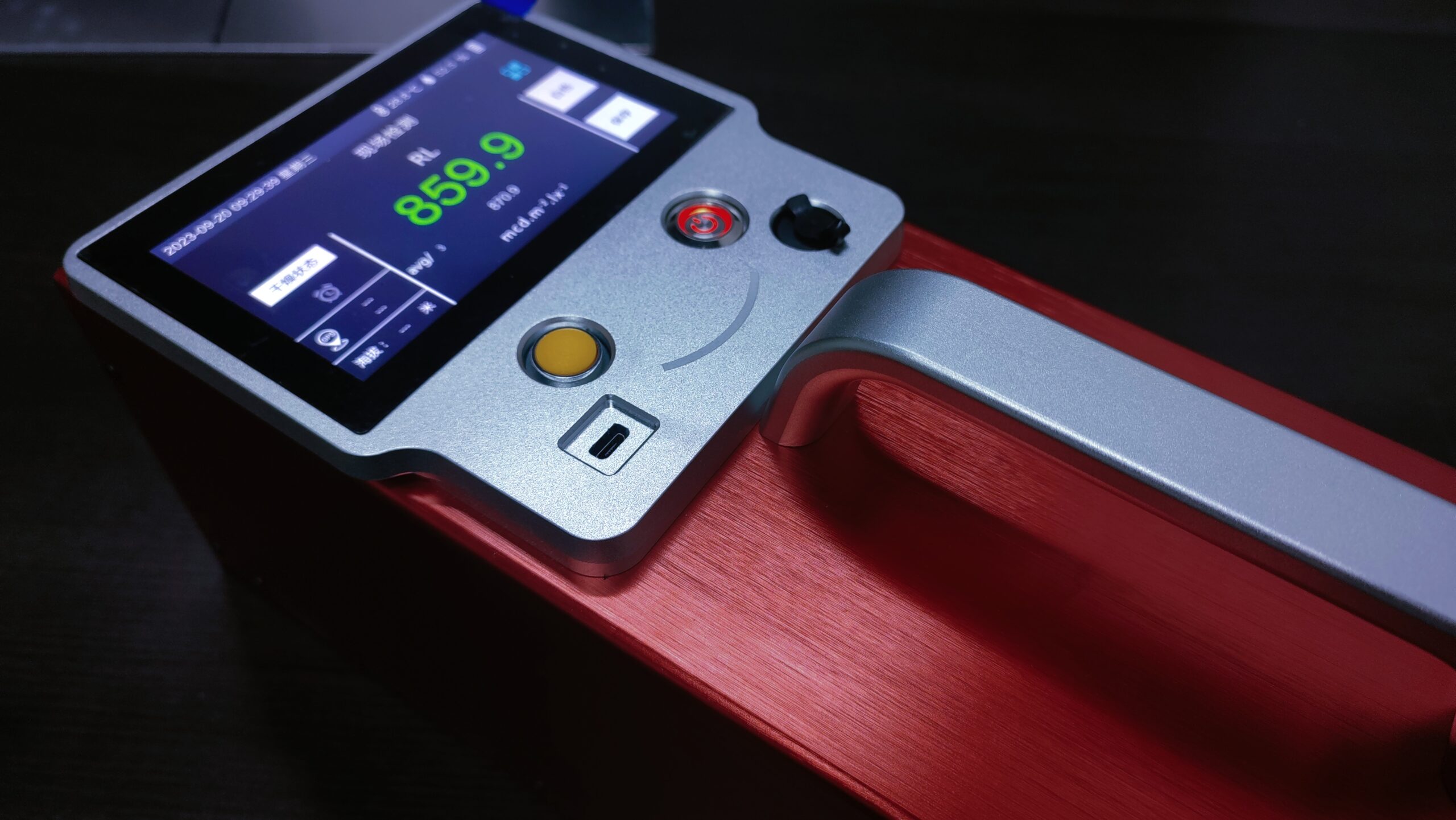

5-inch daylight high-brightness screen, the operation interface can be seen clearly under light;
Supports color measurement of color markings, with six colors available: white, yellow, orange, red, green and blue;
Support the numerical setting of the standard marking line and perform testing to determine whether it is qualified or not;
Support wet timer setting;
Support multiple measurements to calculate the average;
Supports storage of more than 200,000 pieces of detection data information, including measurement mode, detection color, measurement data, operator, road section information, detection time, temperature and humidity, etc.;
Supports 16G SD card data storage, and supports data storage in the form of Excel tables, which can be exported to the computer through the U disk function;
Support real-time broadcast of measurement data;

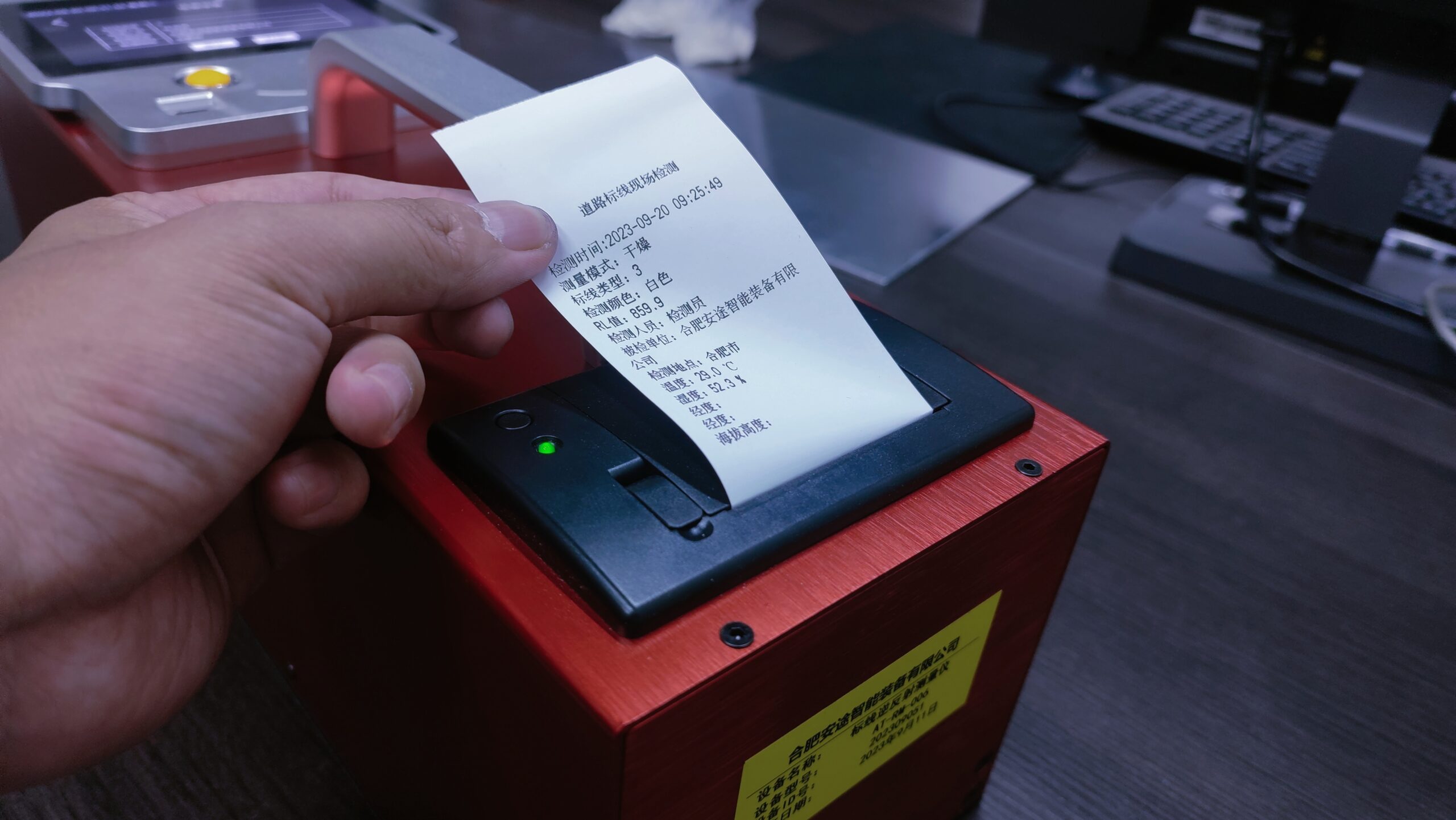

Supports locking on-site inspection data and printing out inspection results directly through the printer on-site;
Use touch keyboard to input Chinese characters, English and characters;
Support real-time display of on-site temperature and humidity;
The English menu operation mode can be opened to foreign customers to facilitate their use;
Can support GPS positioning function (optional);
Can support shooting function (optional);
Can support QD detection function at the same time (needs to be customized and optional);
